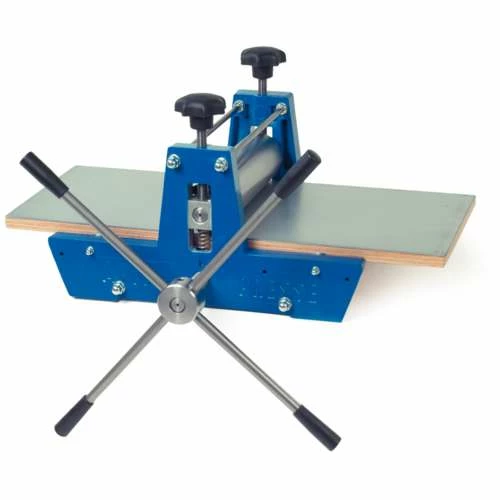

Abig Printing Press 500mm

This Abig Printing Press 500mm is made of cast aluminium with steel rollers. The robust construction ensures good results for lino, woodcut and etching.

The Abig Printing Press 500mm weighs 34kg. and its base measures 56cm x 46.5cm. The printing table measures 50 x 70cm. The rollers are 80mm and their pressure is regulated by comfortable handles on the pressure spindles.

The printing table moves on both sides over slide guides made of technically high-quality, specially friction-minimizing plastic webs.

This Abig Printing Press 500mm is driven by the star shaped side wheel. The electro-galvanised steel plate is 2.5mm thick, and the the printing passage clearance is 18mm. The Abig Printing Press 500mm comes with a soft white printing felt, approx 5mm thick, measuring 49cm x 90cm. The price includes packaging and freight.

Price per press.
